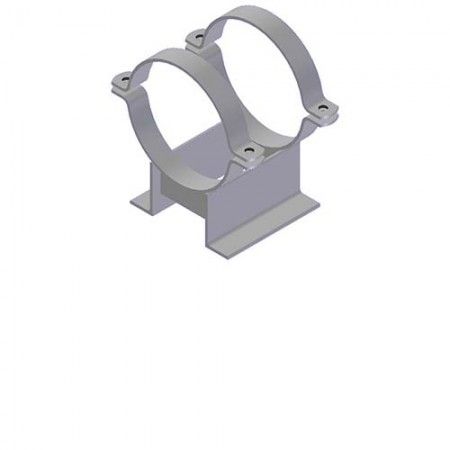

Siedzisko dla rur – Typ I i Typ II z jedną lub dwiema przyspawanymi obejmami na rury wg DIN 3567 Typ A
Materiały wytwórcze:
S235 1.4301 1.4571
Typy powierzchni pokrycia:
stal surowa cynk ogniowy cynk galwaniczny gruntowane (na zamówienie).
| Nr produktu | Rura D | Typ I | Typ II | B/h | H | Kg/szt. | Kg/szt. |
|---|---|---|---|---|---|---|---|
| L | L | Typ I | Typ II | ||||
| 501022.IS | 21.3 | 100 | 200 | 60/60 | 76 | 0.85 | 1.7 |
| 501027.IS | 26.9 | 79 | 0.86 | 1.74 | |||
| 501034.IS | 33.7 | 82 | 0.89 | 1.78 | |||
| 501043.IS | 42.4 | 87 | 0.92 | 1.84 | |||
| 501049.IS | 48.3 | 90 | 0.95 | 1.91 | |||
| 501057.IS | 57 | 95 | 1.2 | 2.4 | |||
| 501061.IS | 60.3 | 96 | 1.22 | 2.42 | |||
| 501076.IS | 76.1 | 104 | 1.29 | 2.52 | |||
| 501089.IS | 88.9 | 111 | 1.36 | 2.73 | |||
| 501108.IS | 108 | 150 | 250 | 132 | 2.73 | 5.03 | |
| 501114.IS | 114.3 | 135 | 2.78 | 5.13 | |||
| 501133.IS | 133 | 145 | 3.02 | 5.6 | |||
| 501140.IS | 139.7 | 80/80 | 148 | 3.14 | 5.85 | ||
| 501159.IS | 159 | 158 | 3.35 | 6.26 | |||
| 501168.IS | 168.3 | 162 | 3.4 | 6.37 | |||
| 501194.IS | 193.7 | 175 | 3.91 | 7.09 | |||
| 501219.IS | 219.1 | 198 | 4.34 | 8.66 | |||
| 501267.IS | 267 | 150 | 300 | 222 | 5.37 | 10.72 | |
| 501273.IS | 273 | 225 | 5.68 | 11.34 | |||
| 501324.IS | 323.9 | 250 | 6.24 | 12.47 | |||
| 501356.IS | 355.6 | 266 | 6.81 | 13.61 | |||
| 501368.IS | 368 | 272 | 7.01 | 14.02 | |||
| 501406.IS | 406.4 | 293 | 10.31 | 20.62 | |||
| 501419.IS | 419 | 330 | 10.52 | 21.02 | |||
| 501508.IS | 508 | 344 | 11.96 | 23.95 | |||
| 501521.IS | 521 | 351 | 12.16 | 24.32 |
