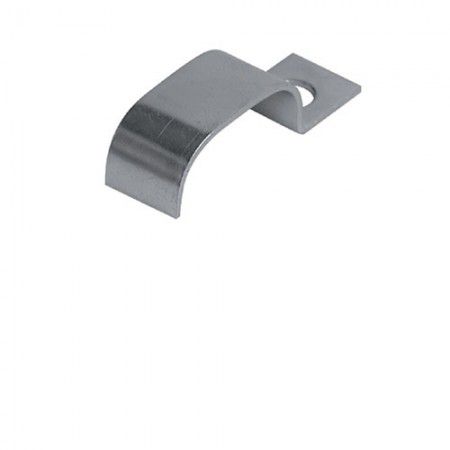

Mocowanie do kabli wg DIN 72573
Materiały wytwórcze:
S235 1.4571
Typy powierzchni pokrycia:
cynk galwaniczny stal surowa – dla stali kwasoodpornej
| Nr produktu | Ød1 | Dla kabli | a | Ød2 | h | I1 | I2 | Stal mm | 100 szt.= kg |
|---|---|---|---|---|---|---|---|---|---|
| 160010.IS | 4 | 1 | 4.8 | 3.5 | 29 | 17 | 10x1 | 0.23 | |
| 160011.IS | 5 | 4.5 | 30 | 18 | 0.27 | ||||
| 160012.IS | 6 | 5.5 | 32 | 20 | 0.29 | ||||
| 160013.IS | 7 | 6.5 | 32 | 20 | 0.32 | ||||
| 160014.IS | 8 | 7.5 | 34 | 22 | 0.34 | ||||
| 160015.IS | 10 | 9.5 | 34 | 22 | 0.37 | ||||
| 160016.IS | 12 | 5.8 | 11.3 | 46 | 32 | 12x1,5 | 0.85 | ||
| 160017.IS | 15 | 14.3 | 50 | 36 | 0.98 | ||||
| 160018.IS | 16 | 15.3 | 50 | 36 | 0.99 | ||||
| 160019.IS | 18 | 7 | 17.3 | 50 | 36 | 1.05 | |||
| 160020.IS | 20 | 19.3 | 52 | 38 | 1.12 | ||||
| 160021.IS | 22 | 21.3 | 54 | 40 | 1.22 | ||||
| 160022.IS | 4 | 2 | 8.5 | 4.8 | 3.5 | 33 | 21 | 10x1 | 0.25 |
| 160023.IS | 5 | 10.5 | 4.5 | 35 | 23 | 0.31 | |||
| 160024.IS | 6 | 12.5 | 5.5 | 38 | 26 | 0.34 | |||
| 160025.IS | 7 | 14.5 | 6.5 | 39 | 27 | 0.37 | |||
| 160026.IS | 8 | 16.5 | 7.5 | 42 | 30 | 0.41 | |||
| 160027.IS | 10 | 20.5 | 9.5 | 44 | 32 | 0.45 | |||
| 160028.IS | 12 | 24.5 | 5.8 | 11.3 | 58 | 44 | 12x1,5 | 1.02 | |
| 160029.IS | 15 | 30.5 | 14.3 | 66 | 52 | 1.21 | |||
| 160030.IS | 16 | 32.5 | 15.3 | 66 | 52 | 1.23 | |||
| 160031.IS | 18 | 36.5 | 7 | 17.3 | 69 | 55 | 1.32 | ||
| 160032.IS | 20 | 40.5 | 19.3 | 73 | 59 | 1.42 | |||
| 160033.IS | 22 | 44.5 | 21.3 | 77 | 63 | 1.52 | |||
| 160034.IS | 4 | 3 | 12.5 | 4.8 | 3.5 | 39 | 27 | 10x1 | 0.34 |
| 160035.IS | 5 | 15.5 | 4.5 | 41 | 29 | 0.36 | |||
| 160036.IS | 6 | 18.5 | 5.5 | 45 | 33 | 0.41 | |||
| 160037.IS | 7 | 21.5 | 6.5 | 47 | 35 | 0.43 | |||
| 160038.IS | 8 | 24.5 | 7.5 | 51 | 39 | 0.48 | |||
| 160039.IS | 10 | 30.5 | 9.5 | 55 | 43 | 0.53 | |||
| 160040.IS | 12 | 36.5 | 5.8 | 11.3 | 71 | 57 | 12x1,5 | 1.21 | |
| 160041.IS | 15 | 45.5 | 14.3 | 81 | 67 | 1.41 | |||
| 160042.IS | 16 | 48.5 | 15.3 | 81 | 67 | 1.45 | |||
| 160043.IS | 18 | 54.5 | 7 | 17.3 | 87 | 73 | 1.58 | ||
| 160044.IS | 20 | 60.5 | 19.3 | 93 | 79 | 1.7 | |||
| 160045.IS | 22 | 66.5 | 21.3 | 99 | 85 | 1.83 | |||
| 160046.IS | 4 | 4 | 17 | 4.8 | 3.5 | 44 | 32 | 10x1 | 0.37 |
| 160047.IS | 5 | 21 | 4.5 | 46 | 34 | 0.4 | |||
| 160048.IS | 6 | 25 | 5.5 | 51 | 39 | 0.45 | |||
| 160049.IS | 7 | 29 | 6.5 | 54 | 42 | 0.48 | |||
| 160050.IS | 8 | 33 | 7.5 | 59 | 47 | 0.54 | |||
| 160051.IS | 10 | 41 | 9.5 | 67 | 55 | 0.63 | |||
| 160052.IS | 12 | 49 | 5.8 | 11.3 | 83 | 69 | 12x1,5 | 1.38 | |
| 160053.IS | 15 | 61 | 14.3 | 95 | 81 | 1.62 | |||
| 160054.IS | 16 | 65 | 15.3 | 95 | 81 | 1.7 | |||
| 160055.IS | 18 | 73 | 7 | 17.3 | 105 | 91 | 1.83 | ||
| 160056.IS | 4 | 5 | 21 | 4.8 | 3.5 | 48 | 36 | 10x1 | 0.41 |
| 160057.IS | 5 | 26 | 4.5 | 53 | 41 | 0.47 | |||
| 160058.IS | 6 | 31 | 5.5 | 57 | 45 | 0.5 | |||
| 160059.IS | 7 | 36 | 6.5 | 63 | 51 | 0.52 | |||
| 160060.IS | 8 | 41 | 7.5 | 68 | 56 | 0.6 | |||
| 160061.IS | 10 | 51 | 9.5 | 77 | 65 | 0.71 | |||
| 160062.IS | 12 | 61 | 5.8 | 11.3 | 95 | 81 | 12x1,5 | 1.6 | |
| 160063.IS | 4 | 6 | 25 | 4.8 | 3.5 | 52 | 40 | 10x1 | 0.44 |
| 160064.IS | 5 | 31 | 4.5 | 58 | 46 | 0.5 | |||
| 160065.IS | 6 | 37 | 5.5 | 64 | 52 | 0.56 | |||
| 160066.IS | 7 | 43 | 6.5 | 72 | 60 | 0.63 | |||
| 160067.IS | 8 | 49 | 7.5 | 76 | 64 | 0.68 | |||
| 160068.IS | 10 | 61 | 9.5 | 90 | 78 | 0.81 | |||
| 160069.IS | 4 | 7 | 29.5 | 4.8 | 3.5 | 56 | 44 | 10x1 | 0.47 |
| 160070.IS | 5 | 36.5 | 4.5 | 64 | 52 | 0.54 | |||
| 160071.IS | 6 | 43.5 | 5.5 | 72 | 60 | 0.62 | |||
| 160072.IS | 7 | 50.5 | 6.5 | 78 | 66 | 0.68 | |||
| 160073.IS | 8 | 57.5 | 7.5 | 86 | 74 | 0.75 | |||
| 160074.IS | 4 | 8 | 33.5 | 4.8 | 3.5 | 60 | 48 | 10x1 | 0.5 |
| 160075.IS | 5 | 41.5 | 4.5 | 68 | 56 | 0.57 | |||
| 160076.IS | 6 | 49.5 | 5.5 | 76 | 64 | 0.65 | |||
| 160078.IS | 7 | 57.5 | 6.5 | 85 | 73 | 0.73 | |||
| 160079.IS | 4 | 9 | 37.5 | 4.8 | 3.5 | 64 | 52 | 10x1 | 0.53 |
| 160080.IS | 5 | 46.5 | 4.5 | 74 | 62 | 0.62 | |||
| 160081.IS | 6 | 55.5 | 5.5 | 82 | 70 | 0.7 | |||
| 160082.IS | 4 | 10 | 42 | 4.8 | 3.5 | 68 | 56 | 10x1 | 0.57 |
| 160083.IS | 5 | 52 | 4.5 | 78 | 66 | 0.65 | |||
| 160084.IS | 6 | 62 | 5.5 | 90 | 78 | 0.76 | |||
| 160085.IS | 4 | 11 | 46 | 4.8 | 3.5 | 72 | 60 | 10x1 | 0.6 |
| 160086.IS | 5 | 57 | 4.5 | 84 | 72 | 0.7 | |||
| 160087.IS | 6 | 68 | 5.5 | 96 | 84 | 0.8 | |||
| 160088.IS | 4 | 12 | 50 | 4.8 | 3.5 | 77 | 65 | 10x1 | 0.64 |
| 160089.IS | 5 | 62 | 4.5 | 90 | 78 | 0.75 | |||
| 160090.IS | 6 | 74 | 5.5 | 102 | 90 | 0.87 | |||
