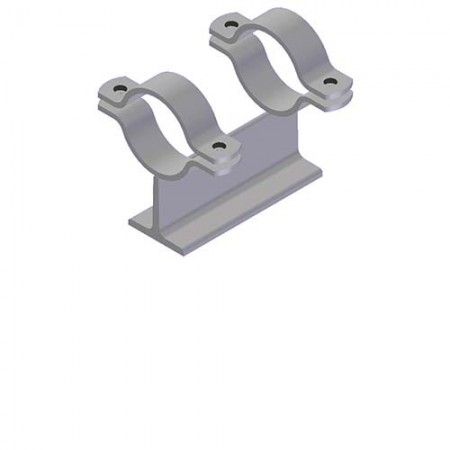

Przesuwne siedzisko do rur – typ ciężki z obejmami na rury wg DIN 3567 Typ A
Materiały wytwórcze:
S235 1.4301 1.4571
Typy powierzchni pokrycia:
stal surowa cynk ogniowy cynk galwaniczny gruntowane (na zamówienie).
| Nr produktu | D | Typ I L | Typ II L | H | C | Kątownik | Kg/szt. Typ I | Kg/szt. Typ II |
|---|---|---|---|---|---|---|---|---|
| 531219 | 219 | 200 | 360 | 257 | 50x10 L100 | 150/75/9 | 9.60 | 17.19 |
| 531373 | 273 | 286 | 10.85 | 19.68 | ||||
| 531324 | 323.9 | 310 | 50x10 L115 | 11.55 | 21.10 | |||
| 531356 | 355.6 | 354 | 50x10 L130 | 180/90/10 | 14.13 | 25.60 | ||
| 531368 | 368 | 360 | 14.29 | 25.91 | ||||
| 531406 | 406.4 | 400 | 381 | 60x12 L145 | 18.20 | 34.75 | ||
| 531419 | 419 | 387 | 18.27 | 34.90 | ||||
| 531457 | 457.2 | 407 | 60x12 L150 | 18.98 | 36.26 | |||
| 531508 | 508 | 433 | 19.87 | 38.04 | ||||
| 531521. | 521 | 440 | 20.24 | 38.65 | ||||
| 531610 | 609.6 | 499 | 60x12 L200 | 200/100/12 | 23.19 | 47.5 | ||
| 531712 | 711.2 | 549 | 100x15 L220 | 27.14 | 54.48 | |||
| 531813 | 812.8 | 597 | 100x15 L250 | 29.21 | 58.66 | |||
| 531915 | 914.4 | 646 | 100x15 L280 | 31.26 | 62.79 | |||
| 531016 | 1016 | 696 | 100x15 L300 | 33.44 | 67.17 |
