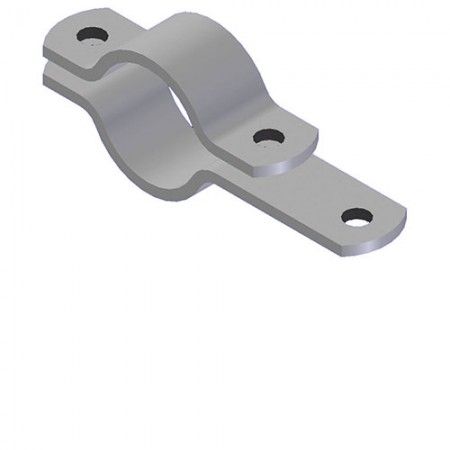

Obejma na rury z możliwością docisku wg DIN 1592- wersja ciężka
Materiały wytwórcze:
S235 1.4301 1.4571
Typy powierzchni pokrycia:
stal surowa ocynk galwaniczny
| Nr produktu | Zastosowanie do rur o średnicy zewnętrznej | d1 | d2 | h | I1 | I2 | Stal w mm | Śruby | 100 szt.= kg |
|---|---|---|---|---|---|---|---|---|---|
| 140007 | 5,5-7 | 7 | 6.6 | 5 | 22 | 14 | 16x2 | M6 | 0.8 |
| 140009 | 7-9 | 9 | 6 | 27 | 18 | 20x2 | 1.1 | ||
| 140013 | 9,5-13 | 13 | 11 | 9 | 40 | 25 | 25x3 | M10 | 3.5 |
| 140015 | 13-15,5 | 15.5 | 12 | 41 | 26 | 3.7 | |||
| 140019 | 15,5-19 | 19 | 15 | 43 | 28 | 4.2 | |||
| 140023 | 20-23 | 23 | 14 | 19 | 51 | 35 | 30x5 | M12 | 10 |
| 140026 | 23-25 | 26 | 22 | 52 | 36 | 10.8 | |||
| 140028 | 25-28,5 | 28.5 | 24 | 53 | 37 | 11.4 | |||
| 140031 | 28,5-31 | 31 | 27 | 55 | 39 | 12.5 | |||
| 140036 | 33-36 | 36 | 32 | 57 | 41 | 40x5 | 18.2 | ||
| 140039 | 36-39 | 39 | 34 | 59 | 43 | 19.2 | |||
| 140043 | 39-43 | 43 | 18 | 38 | 68 | 48 | M16 | 21.8 | |
| 140046 | 43-46 | 46 | 41 | 70 | 50 | 23 | |||
| 140049 | 46-49 | 49 | 44 | 73 | 53 | 40x8 | 39.5 | ||
| 140052 | 49-52 | 52* | 47 | 76 | 56 | 41 | |||
| 140058 | 53-58 | 58 | 52 | 78 | 58 | 44 | |||
| 140061 | 58-61 | 61 | 57 | 80 | 60 | 47.2 |
